Instructions
The YONDA multi-purpose excavator drilling boom kit is a purpose-built hydraulic attachment system designed for backhoe loaders, wheeled excavators and crawler excavators. It expands the capability of an existing carrier for rock drilling, auger drilling or hydraulic pile-driving applications.
The system integrates the boom, mounting interface, hydraulic valve system and operating controls. Each configuration is matched to the excavator's hydraulic flow, pressure and existing piping arrangement for practical installation, operation and maintenance.
YONDA offers three main drilling boom series, allowing customers to select the correct solution for the actual application.
Three Application-Based Boom Systems:
1. Hydraulic Rock Drilling Series - Configured with a suitable YONDA hydraulic drifter for surface blast holes, mining, tunneling, rock bolting, anchoring and other rock drilling applications.
2. Earth and Auger Drilling Series - Configured with a YONDA earth drill and suitable drilling tools for soil drilling, foundation holes, post holes and other earth-drilling applications.
3. Hydraulic Pile-Driving Series - Configured with a YONDA hydraulic pile driver and guiding system for highway guardrail posts, road infrastructure posts, solar foundation piles and other small or medium-sized pile-driving work
4. Each series is designed around its own operating method. The boom structure, working head and hydraulic controls are selected according to the intended application rather than supplied as one fixed universal package.
Key Advantages:
1. Utilize an Existing Excavator: Expand the machine's capability and reduce investment in a separate dedicated platform.
2.Three Application Options: Select a boom system for rock drilling, auger drilling or hydraulic pile driving.
3. Integrated Hydraulics: Match the valve system, piping and controls to the excavator's hydraulic conditions.
4. Multiple Carrier Types: Configure the system for backhoe loaders, wheeled excavators or crawler excavators.
5. Flexible Controls: Choose wired operation or wireless remote control according to the project.
6. Purpose-Built Configuration: Match the boom, working head and installation interface to the actual application.
7. Job-Site Mobility: Utilize the excavator’s mobility, working range and terrain adaptability.
Product Video
FAQ

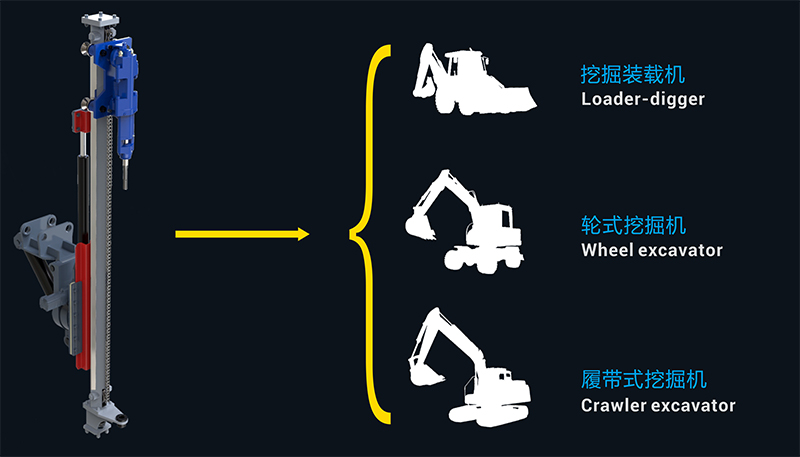

1. What types of carriers can use the drilling boom kit?
The system can be configured for backhoe loaders, wheeled excavators and crawler excavators. Compatibility depends on the carrier structure, operating weight, hydraulic capacity and available mounting space.

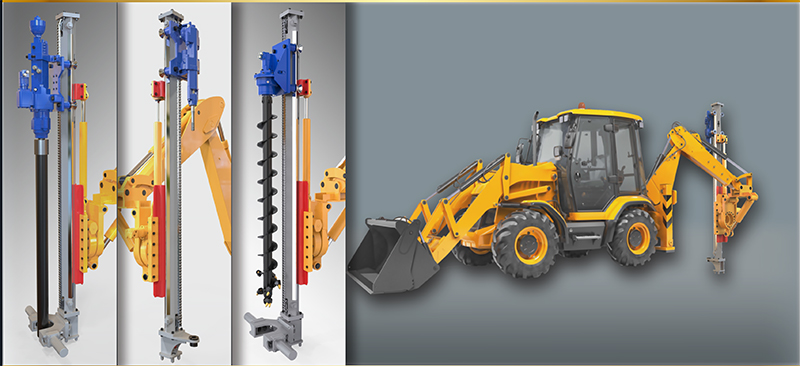

2. What application series are available?
YONDA offers hydraulic rock drilling, earth and auger drilling, and hydraulic pile-driving boom systems. Each series is configured for a different working method.

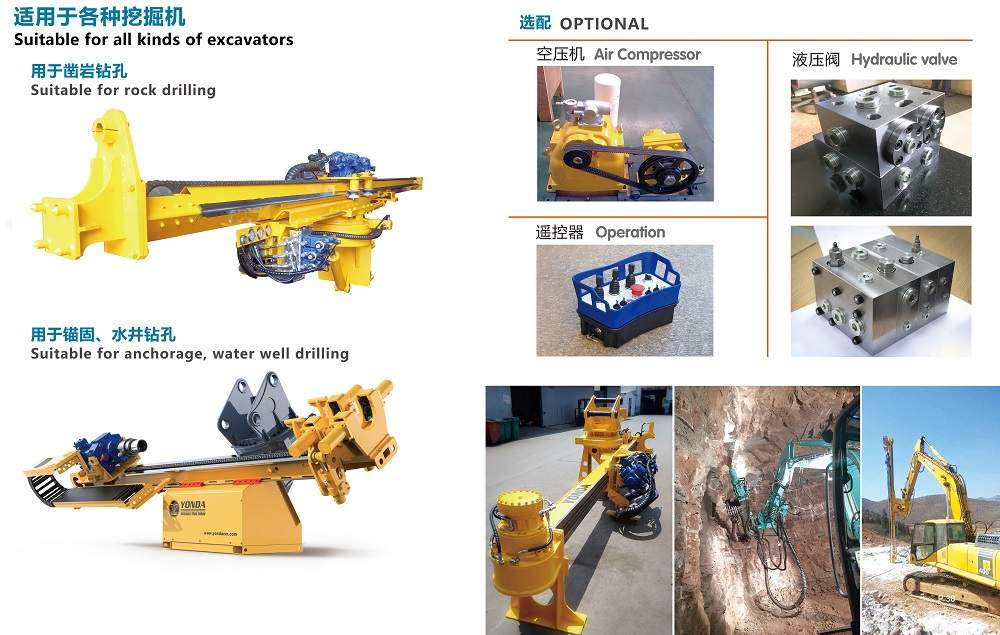

3. What is included in a complete drilling boom system?
Depending on the application, the system can include a boom or feed beam, working head, mounting bracket, hydraulic valves, piping, controls and application-specific drilling tools or adaptors.
4. Are wired and wireless controls available?
Yes. Wired operation or wireless remote control can be selected according to the project. The final control functions depend on the working head and hydraulic configuration.
