The YONDA YSD700B Sonic Drill is a hydraulic sonic drilling head designed for geotechnical investigation, environmental drilling and undisturbed soil sampling.
By combining high-frequency vibration with hydraulic rotation, the YSD700B supports sonic resonance drilling for efficient penetration and high-quality, intact soil core recovery. It is well suited for applications where accurate subsurface investigation and representative soil samples are required.
The YSD700B delivers a maximum vibration frequency of 104 Hz and a maximum vibration force of 100 kN. Its two-speed rotation system provides up to 11,500 Nm of torque, allowing the drilling system to adapt to different ground conditions and drilling requirements.
An integrated air/water inlet mechanism supports various drilling and flushing requirements, while the robust and maintenance-friendly structure is designed for reliable field operation.
Key Features
Maximum vibration frequency: 104 Hz
Maximum vibration force: 100 kN
Maximum rotation torque: 11,500 Nm
Two-speed rotation: 92 / 46 rpm
High-frequency sonic vibration with hydraulic rotation
Integrated air/water inlet mechanism
Designed for undisturbed soil coring and geological sampling
Robust and maintenance-friendly construction
Applications
Environmental Investigation | Undisturbed Soil Coring | Geotechnical Investigation | Monitoring Wells | Geothermal Small-Bore Drilling

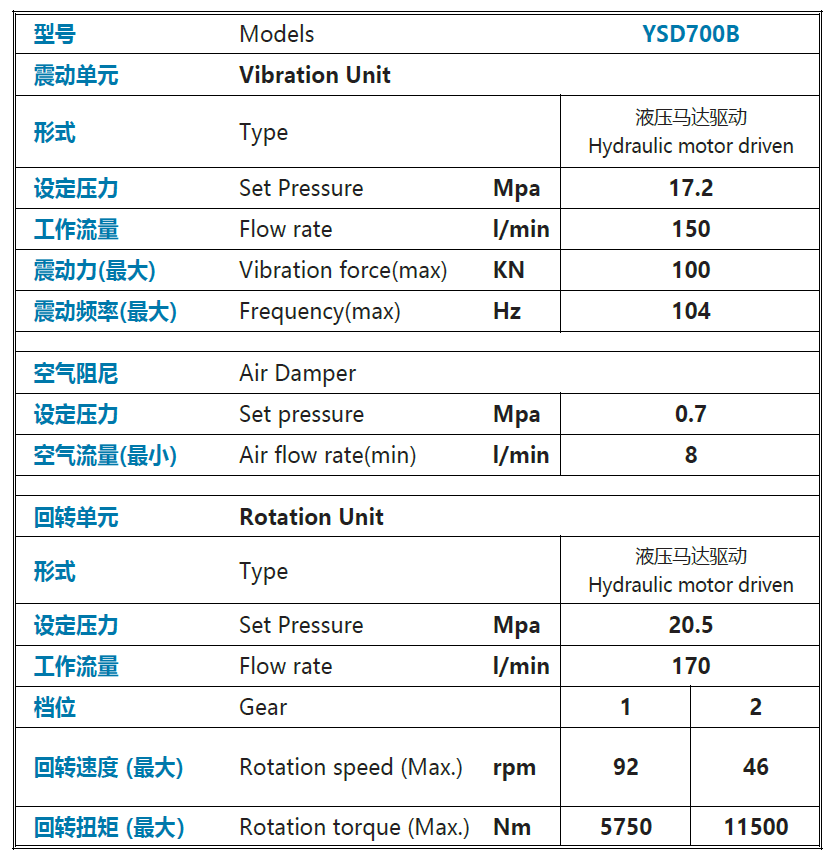

Parameter
FAQ
1. What is the YONDA YSD700B Sonic Drill?
The YSD700B is a hydraulic sonic drilling head that combines high-frequency vibration and rotary drilling. It is designed for geotechnical investigation, environmental drilling and undisturbed soil sampling.
2. What applications is the YSD700B suitable for?
Typical applications include environmental investigation, undisturbed soil coring, geotechnical investigation, monitoring wells and geothermal small-bore drilling.
3. Does the YSD700B support air or water flushing?
Yes. The YSD700B incorporates an integrated air/water inlet mechanism to support different drilling and flushing requirements.
4. Can the YSD700B Sonic Drill Head be installed on different drilling rigs?
The YSD700B can be evaluated for integration with different hydraulic drilling rigs. Hydraulic pressure, flow rate, mounting interface and drilling requirements should be confirmed before installation.
