Instructions
Ultra-compact structure with narrow crawler, easy to pass narrow doors and corridors, suitable for indoor confined access.
Full hydraulic drive with high torque output in compact size, adaptable to soil, rock and various formations.

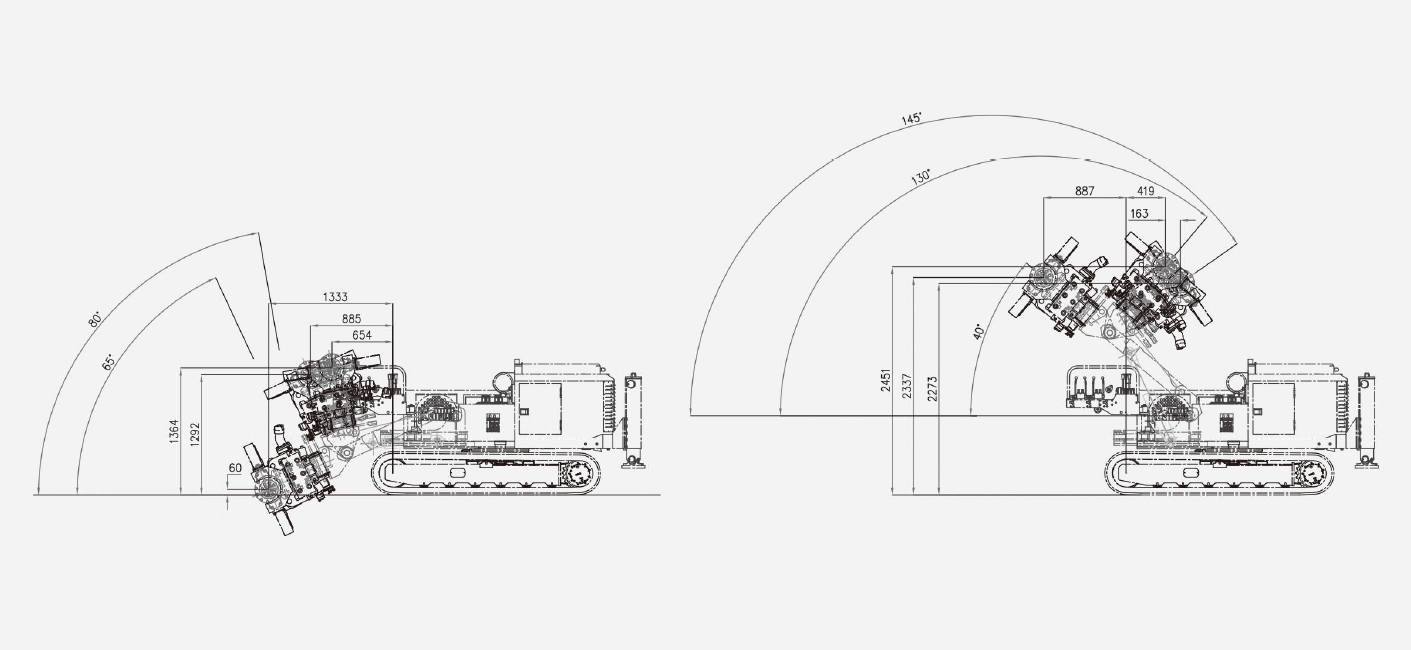

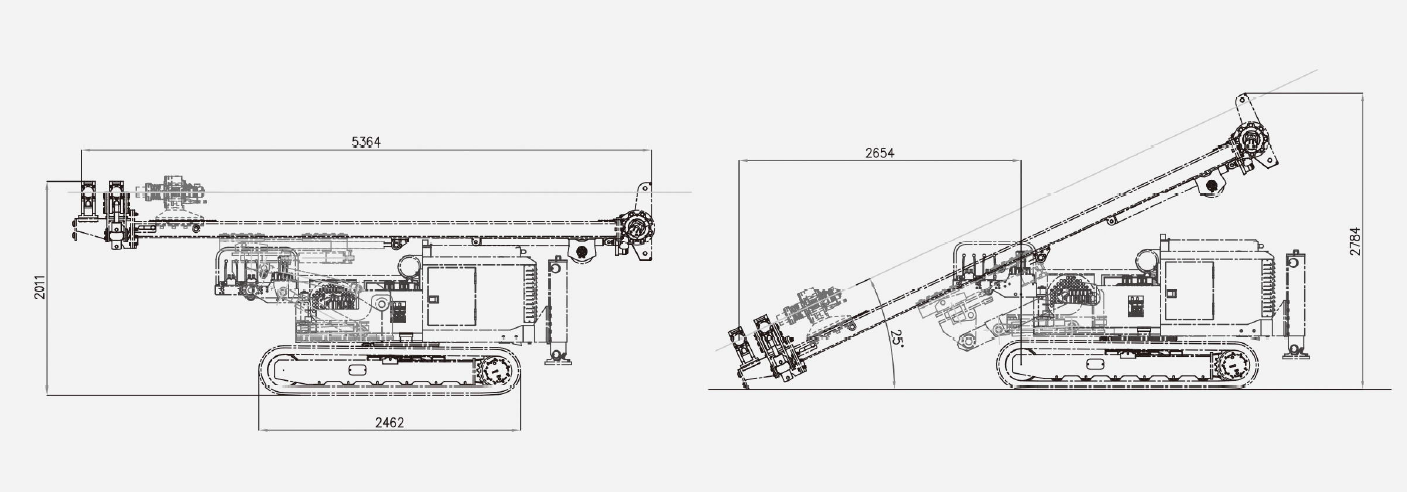

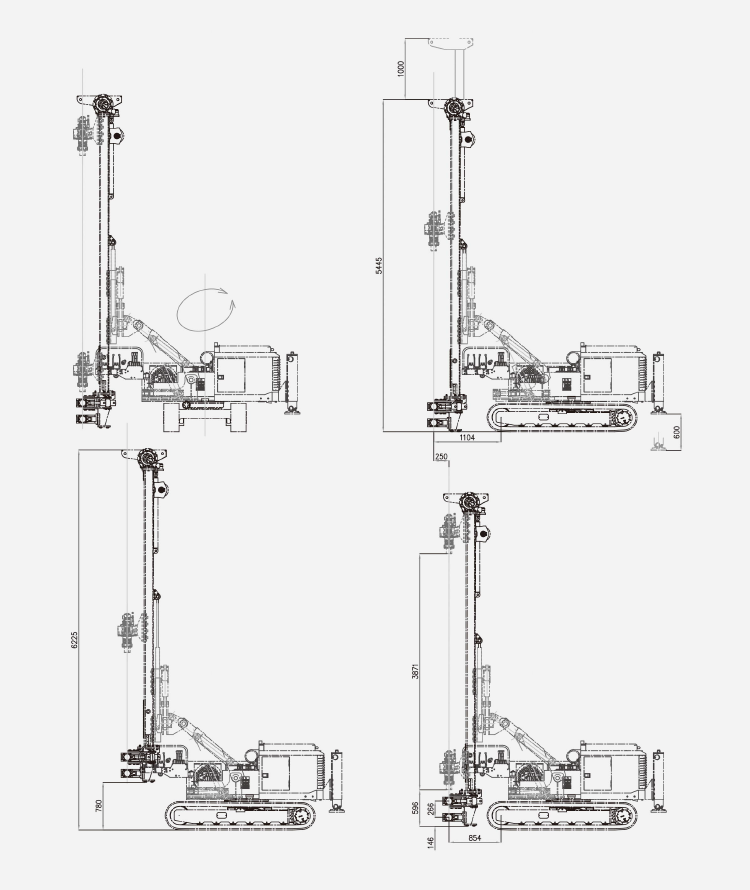

Multi-angle adjustable mast, available for vertical, inclined and horizontal drilling.
Simplified and durable structure, easy maintenance and low operating cost.
Applications:
Indoor bolt support, basement micropile construction, slope reinforcement in narrow sites, building renovation grouting, shallow geological exploration, foundation construction in all confined spaces.
Optional Equipment:
Hydraulic rotary drill heads with different torque specifications
Percussion drill heads with different impact energy
Full-function wireless remote control controller or travel-only remote controller

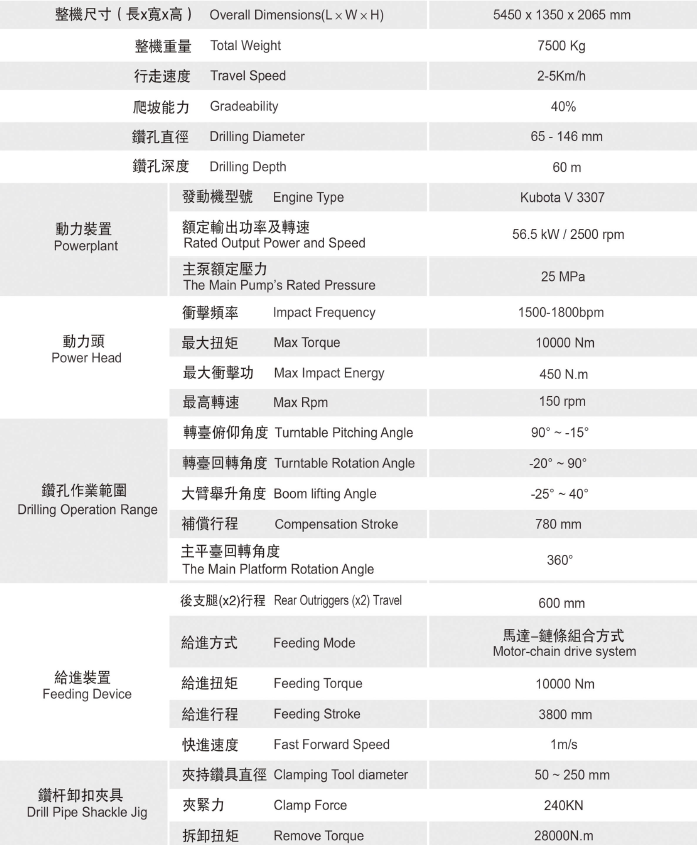

Parameter
FAQ
1. What applications is the YDM80 Multi-Function Drill Rig suitable for?
The YDM80 is suitable for compact and confined construction sites, including indoor areas, basements, narrow alleys, restricted job sites, building renovation projects, slope reinforcement and shallow geological exploration.
2. Can the YDM80 be used for basement micropile construction?
Yes. With its compact body and narrow crawler design, the YDM80 is suitable for basement micropiles, indoor foundation reinforcement and jobsites with limited access.
3. Is the YDM80 suitable for anchor drilling and bolt support?
Yes. The YDM80 can be used for indoor bolt support, anchor drilling in confined sites, slope reinforcement and renovation grouting projects.
4. Can the YDM80 drill vertical, inclined and horizontal holes?
Yes. The YDM80 is equipped with a multi-angle adjustable mast, allowing vertical, inclined and horizontal drilling according to different jobsite requirements.
