Instructions
Performance Advantages:
Combined rotary and impact drilling with built-in reverse drilling function, featuring strong formation adaptability.
Applicable to construction in rock stratum, sand gravel layer, pebble layer and other complex formations.

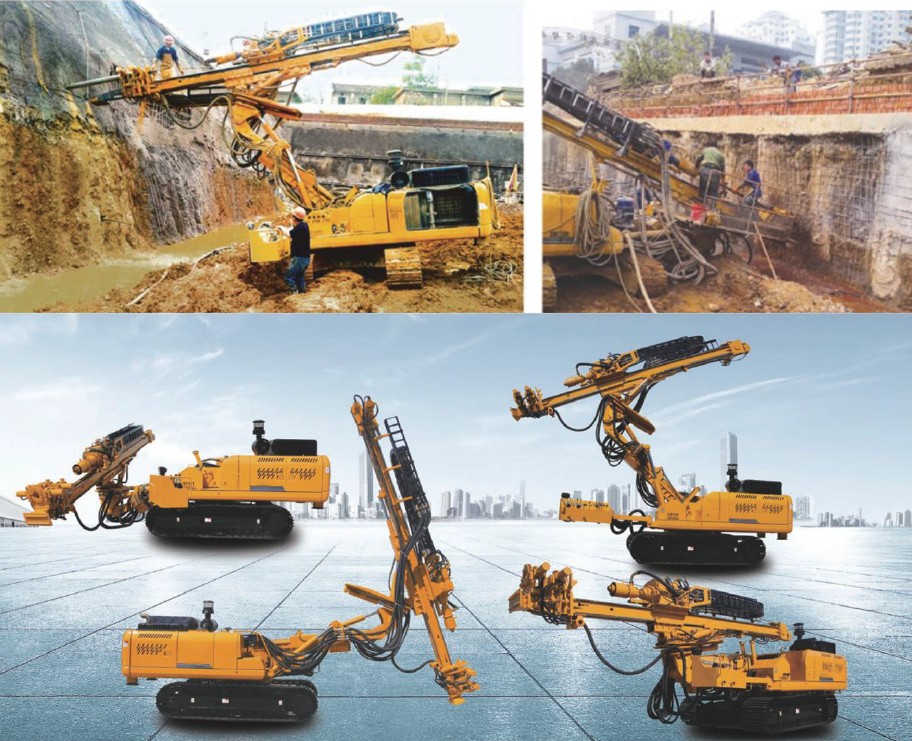

Suitable for various working conditions such as anchoring, reinforcement, slope protection and follow-pipe drilling.

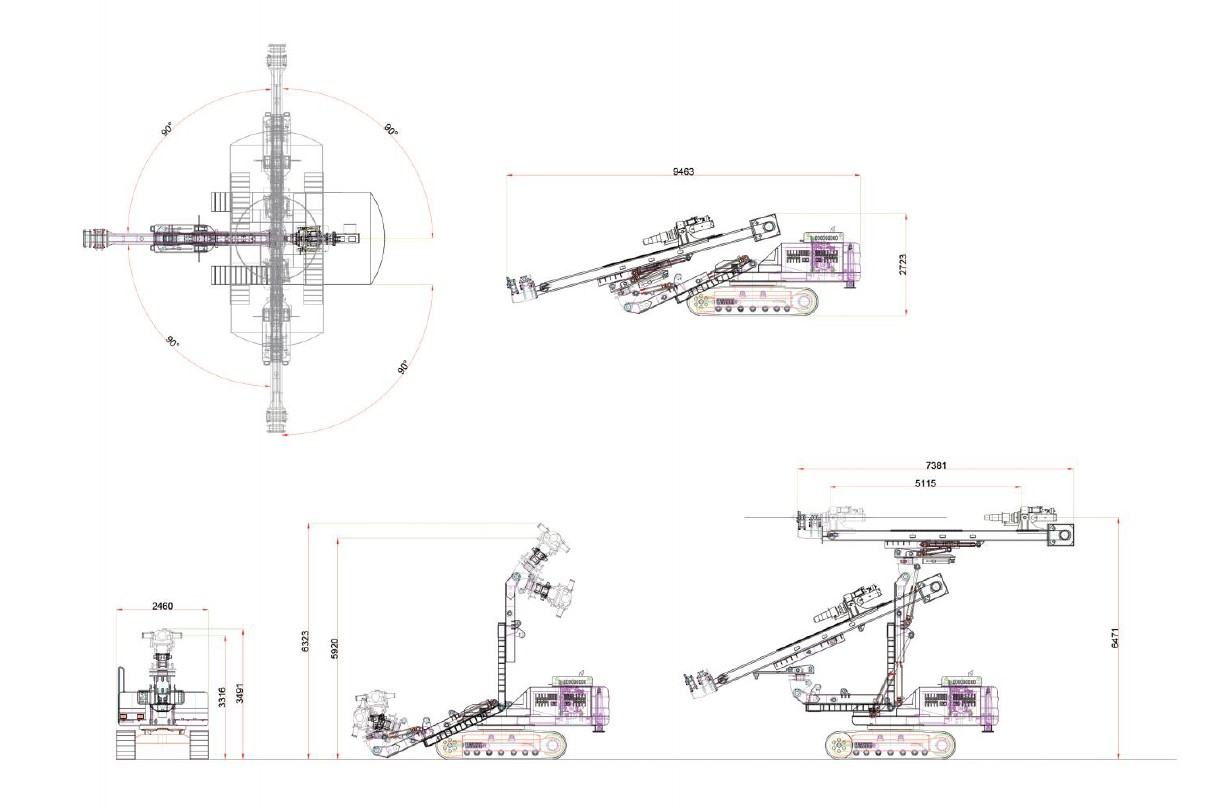

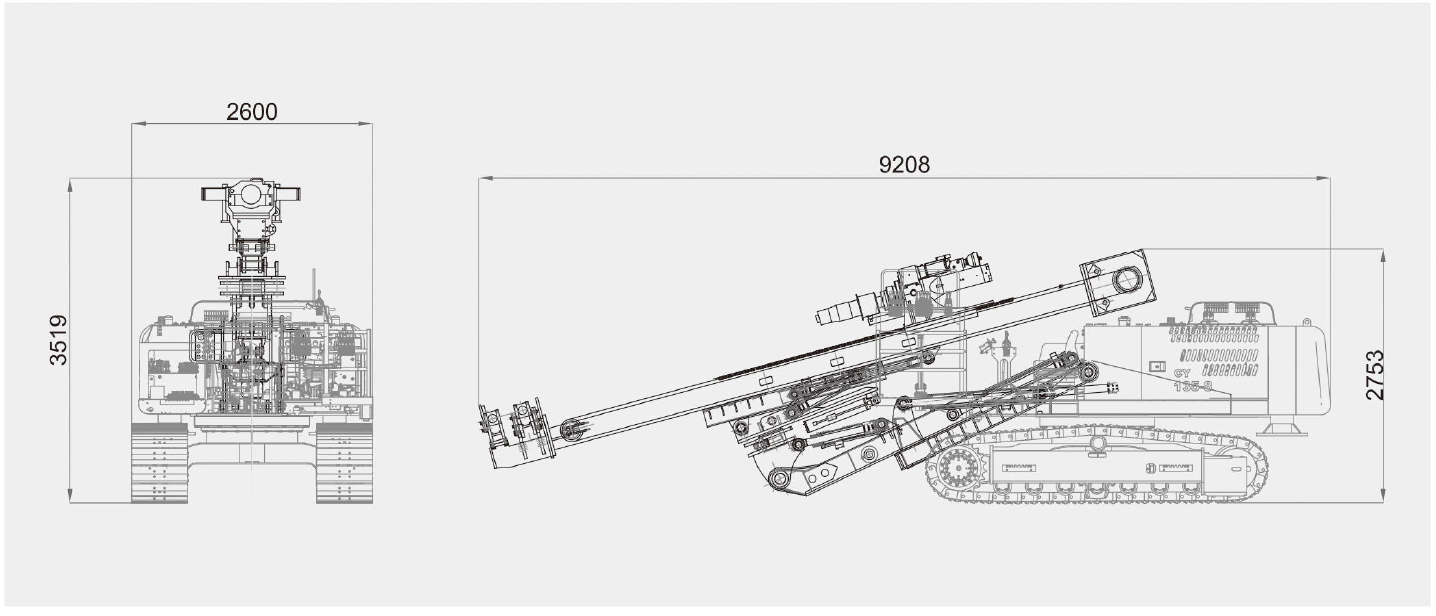

Structure & Working Range:

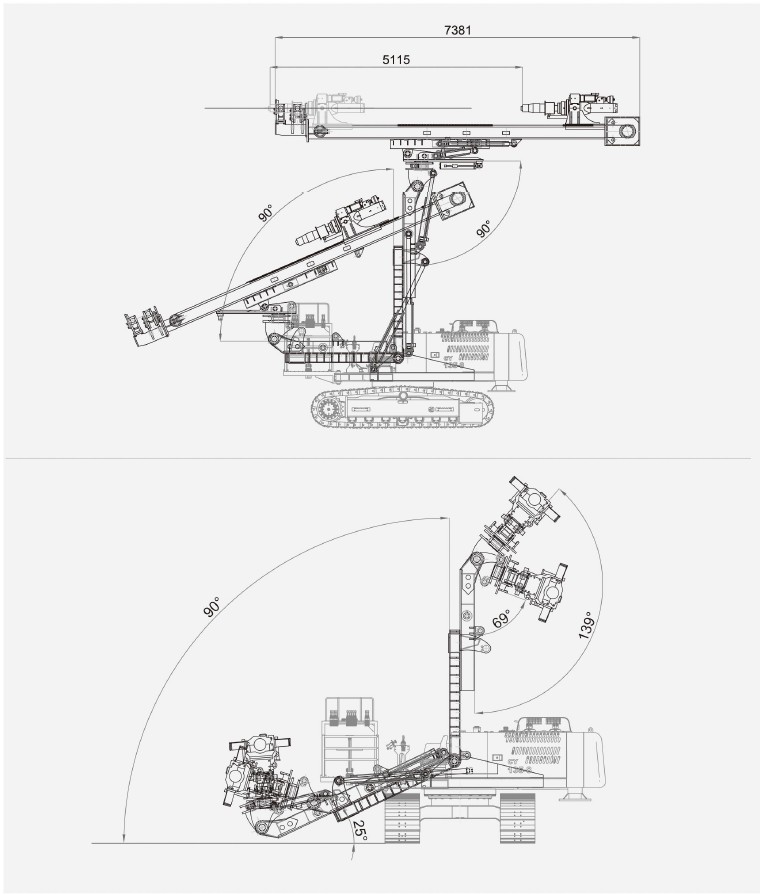

Main arm enables 90° pitching, drill mast realizes 180° swinging with flexible positioning

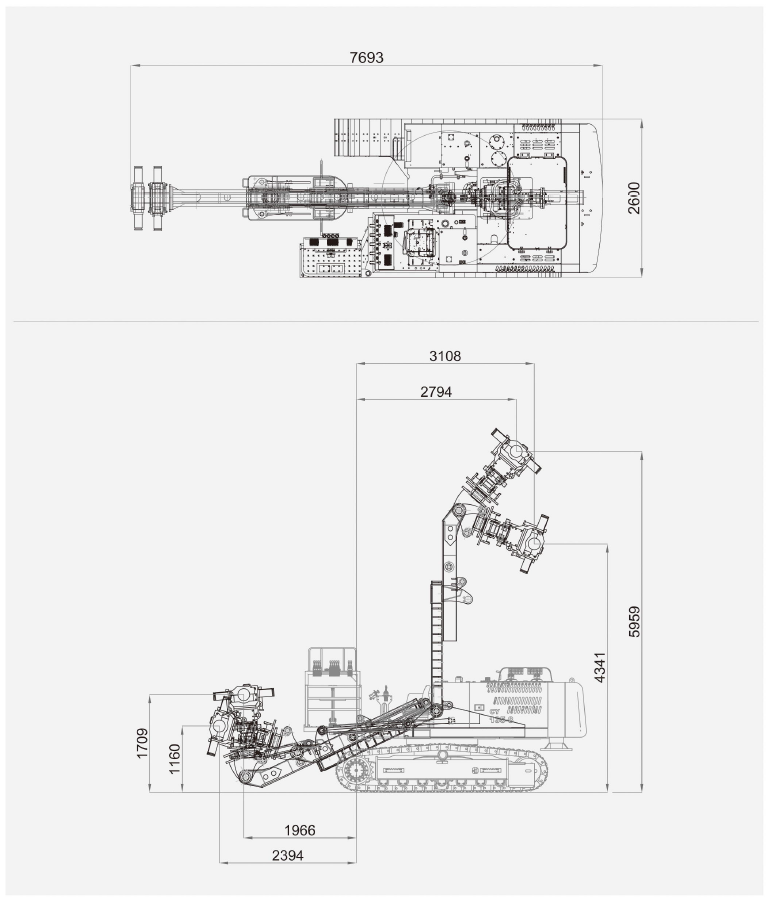

Unique structure of telescopic arm and revolving arm enables multi-layer anchoring operation within 6 meters height
Main frame supports 360° rotation, ideal for dense hole layout and drilling operation.
Optional Equipment:
Hydraulic rotary drill heads with different torque specifications
Percussion drill heads with different impact energy
Radio remote control system

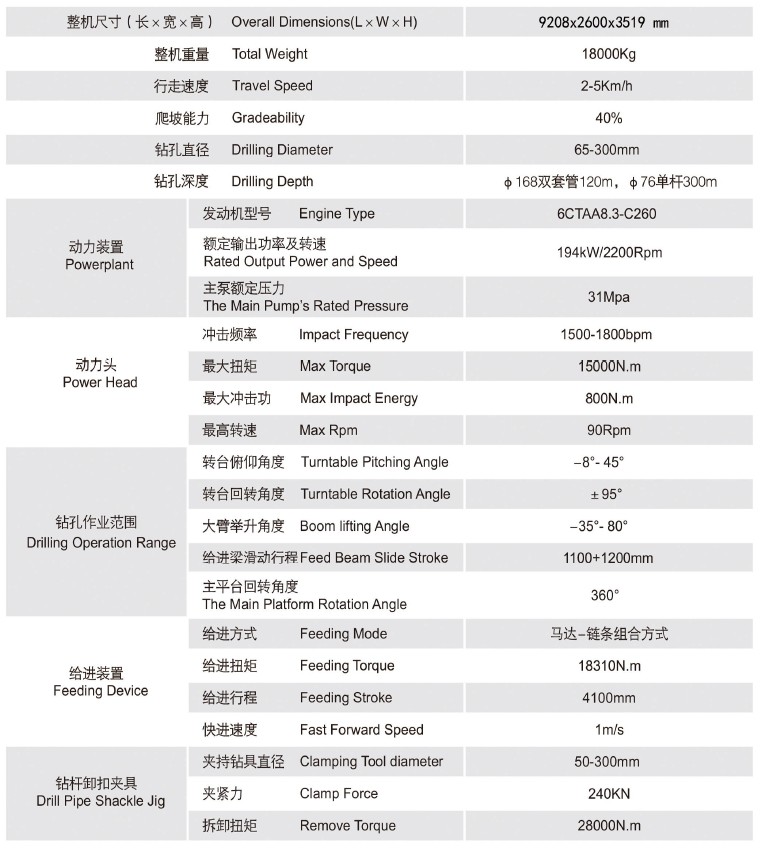

Parameter
FAQ
1. What applications is the YDM200 drill rig suitable for?
The YDM200 is suitable for foundation pit anchoring, slope stabilization, engineering reinforcement, casing anchoring and follow-pipe drilling. Different drilling heads can be selected according to the project requirements.
2. What types of formations can the YDM200 drill through?
The YDM200 can operate in rock, sand and gravel, pebble layers and other complex or collapsible formations. Its combined rotary and impact drilling capability provides strong adaptability to varying ground conditions.
3. Can the YDM200 be used for casing and follow-pipe drilling?
Yes. The YDM200 is suitable for casing anchoring and follow-pipe drilling, particularly in unstable formations where borehole collapse may occur. The final configuration depends on the casing diameter, drilling depth and geological conditions.
4. Can the YDM200 be customized for different projects?
Yes. The YDM200 can be configured with hydraulic rotary heads of different torque ratings, percussion heads of different impact energy and an optional radio remote-control system. The configuration can be selected according to the drilling method and site conditions.
