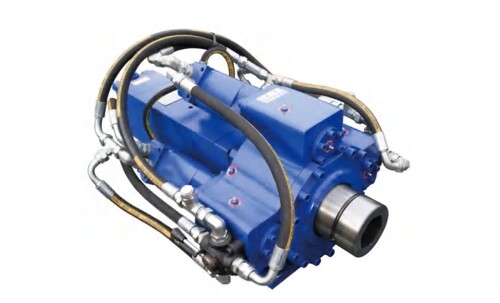

YDH2004E Anchorage & Water Well

Applicable for geological drilling operation.

Instructions

Applicable for geological drilling operation.
Three rotation speeds optional by switching hydraulic loop with the hand-operated hydraulic directional valve equipped.

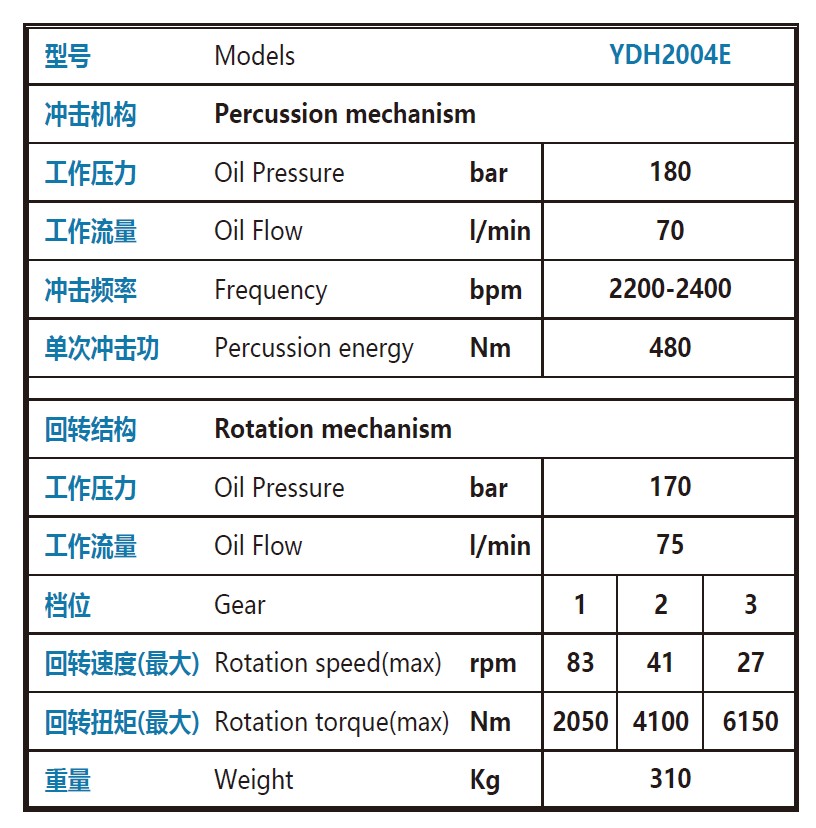

Parameter

Product Video
